769-108/000-038 | WAGO
Socket header, 8 pole, pitch 5 mm, straight, green-yellow/blue/gray, 769-108/000-038
Unit Price (€ / pc.)
8.5561 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
8.56 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5561 €
10 pcs.
7.8659 €
50 pcs.
7.1638 €
100 pcs.
6.4498 €
*incl. VAT plus shipping costs
Subject to prior sale

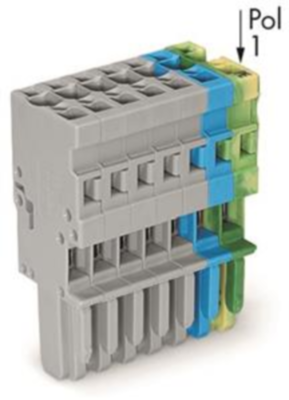

1-Conductor female connector, 769-108/000-038, Wago
1-conductor female multipoint connector with PE start module (green-yellow) for insertion into base terminals or pin headers, can be jumpered with mini cross-bridges 8-pin gray, blue, green-yellow
Technical specifications
| Colour | green-yellow/blue/gray | |
| Rated current | 32 A | |
| Grid | 5 mm | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring-cage connection | |
| Contact type | socket | |
| Rated voltage | 500 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
