769-101 | WAGO

Socket header, 1 pole, pitch 5 mm, straight, gray, 769-101

Order No.: 44P6382
EAN: 4044918471268
MPN:
769-101
Series: X-COM
769-101 WAGO PCB Connection Systems Image 1
769-101 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.1305 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.1305 €

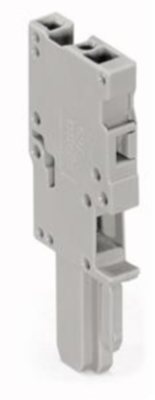

1-Conductor female connector, 769-101, Wago

1-conductor female connector, straight, for insertion into base terminals or pin strips, can be coded, can be bridged with mini jumpers, 1-pole gray

Technical specifications
Filter Property Value
Grid 5 mm
Orientation straight
Connection spring-cage connection
Contact type socket
Rated current 32 A
Additional parts equipped
Version socket header
Pin number 1 pole
Colour gray
Rated voltage 500 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
