734-566/037-000 | WAGO

Socket header, 6 pole, pitch 3.81 mm, angled, orange, 734-566/037-000

Order No.: 44P4367
EAN: 4045454122232
MPN:
734-566/037-000
Series: 734
WAGO
734-566/037-000 WAGO PCB Connection Systems Image 1
734-566/037-000 WAGO PCB Connection Systems Image 2
734-566/037-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.0460 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0460 €
10 pcs.
3.6414 €
100 pcs.
3.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale

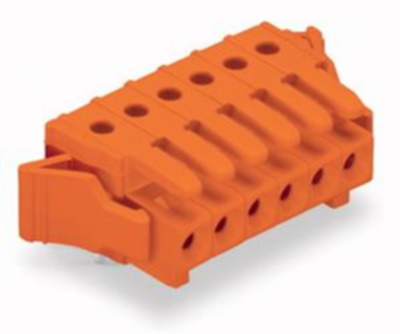

Female header, 734-566/037-000, Wago

Female connector with locking pawls 6-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction parallel to PCB with 2 locking tabs orange

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour orange
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation angled
Pin number 6 pole
Grid 3.81 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
