734-316 | WAGO
Pin header, 16 pole, pitch 3.5 mm, angled, light gray, 734-316
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
8.9012 € *
Available: 7 pcs.

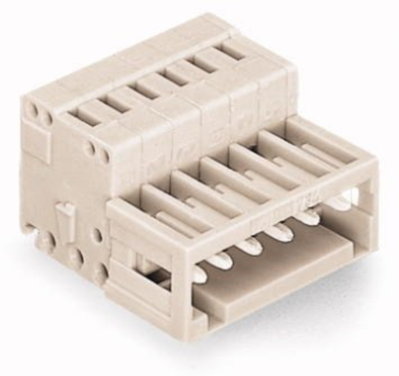

Pin header, 734-316, WAGO

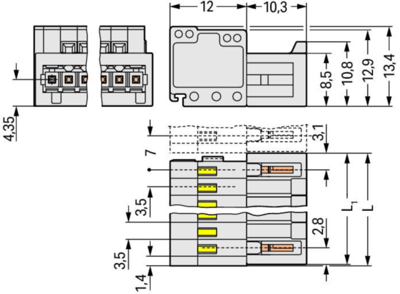

This male connector 734-316 is designed for seamless electrical installations. Ensure that the strip lengths are between 6 and 7 mm when connecting conductors to this male connector. Featuring one conductor terminal along with CAGE CLAMP, this connector delivers reliable performance. Our trusted universal connection known as CAGE CLAMP leads the way when it comes to connection technology and electrical interconnections. The item's dimensions are 58.4 x 13.4 x 22.3 mm. Depending on the type of conductor, this male connector is designed for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 16 pole | |
| Grid | 3.5 mm | |
| Connection | spring balancer connection | |
| Orientation | angled | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
