733-340/105-604/997-446 | WAGO

Pin header, 10 pole, pitch 2.5 mm, straight, black, 733-340/105-604/997-446

Order No.: 44P3739
EAN: 4045454774424
MPN:
733-340/105-604/997-446
Series: MCS MICRO
733-340/105-604/997-446 WAGO PCB Connection Systems Image 1
733-340/105-604/997-446 WAGO PCB Connection Systems Image 2
733-340/105-604/997-446 WAGO PCB Connection Systems Image 3
733-340/105-604/997-446 WAGO PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
2.8322 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.8322 €

Male header, 733-340/105-604/997-446, Wago

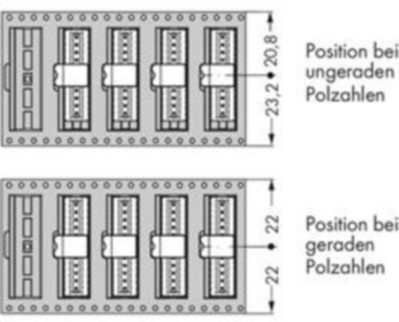

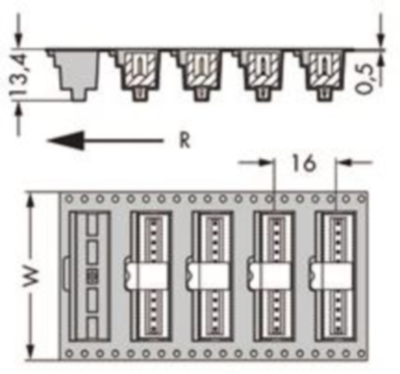

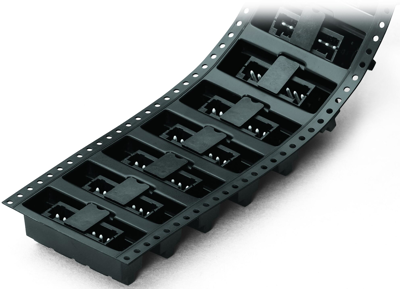

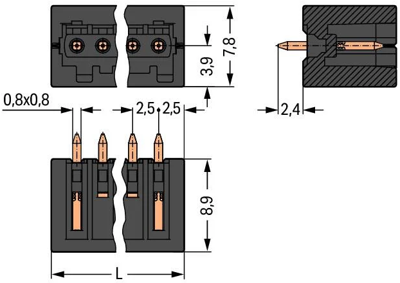

Male connector with straight solder pins in tape according to IEC 60286-3 10 poles grid dimension 2,5 mm / 0.098 in 100 % mismating protected mating direction perpendicular to PCB with sidewalls reflow technology solder pin length 2,4 mm black

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection solder pin
Colour black
Additional parts equipped
Pin number 10 pole
Contact type pin
Orientation straight
Type of locking No
Rated voltage 160 V
contact surface tin-plated
Version pin header
Rated current 6 A
Number of rows 1
Grid 2.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
