733-332/105-604/997-446 | WAGO

Pin header, 2 pole, pitch 2.5 mm, straight, black, 733-332/105-604/997-446

Order No.: 44P3722
EAN: 4045454814489
MPN:
733-332/105-604/997-446
Series: 733
WAGO
733-332/105-604/997-446 WAGO PCB Connection Systems Image 1
733-332/105-604/997-446 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.9639 €

Male header, 733-332/105-604/997-446, Wago

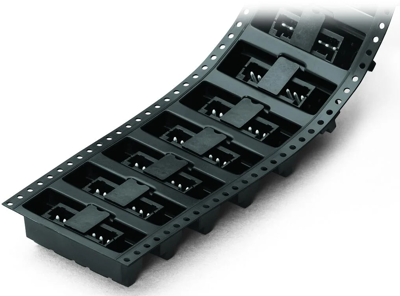

Male connector with straight solder pins in tape according to IEC 60286-3 2 poles Spacing 2.5 mm / 0.098 in 100 % mismating protected Mating direction perpendicular to PCB with side panels Reflow technology Solder pin length 2.4 mm black

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 6 A
Orientation straight
Pin number 2 pole
Grid 2.5 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
