722-242/005-000 | WAGO

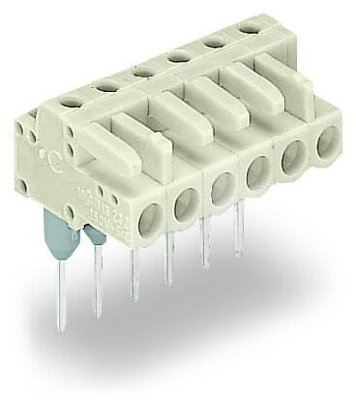

Female connector, 12 pole, pitch 5 mm, angled, light gray, 722-242/005-000
Unit Price (€ / pc.)
15.2558 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
15.26 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2558 €
10 pcs.
14.0301 €
50 pcs.
12.7687 €
100 pcs.
11.4954 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 722-242/005-000, Wago

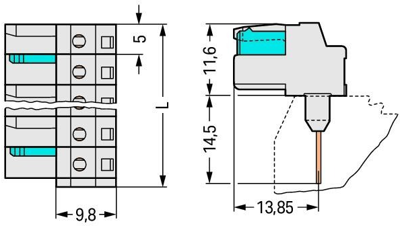

Female connector with angled long pins 12-pole pitch 5 mm / 0.197 mm 100 % mismate protected codable with 2 locking tabs mating direction horizontal 0,6x1 mm with coding tab light grey
Technical specifications
| Colour | light gray | |
| Breakable | No | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 12 A | |
| Grid | 5 mm | |
| Pin number | 12 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | spring-clamp connection | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
