722-238/047-000 | WAGO
Socket header, 8 pole, pitch 5 mm, angled, light gray, 722-238/047-000
Unit Price (€ / pc.)
5.0813 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

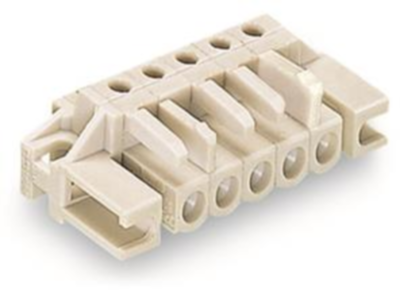

Female header, 722-238/047-000, Wago
Female connector with angled solder pins and spacer flanges 8-pole Spacing 5 mm / 0.197 in 100 % mismating protected Single solder pin 0.6x1 mm codable Mating direction parallel to PCB only 1 detent for flush housing mounting
Technical specifications
| Colour | light gray | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Rated current | 12 A | |
| Grid | 5 mm | |
| Connection plating | tin-plated | |
| Pin number | 8 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder pin | |
| Contact type | socket | |
| Rated voltage | 320 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
