721-620/019-000 | WAGO
Pin header, 20 pole, pitch 5 mm, angled, light gray, 721-620/019-000
Unit Price (€ / pc.)
15.4700 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
15.47 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4700 €
10 pcs.
14.2324 €
50 pcs.
12.9472 €
100 pcs.
11.6620 €
*incl. VAT plus shipping costs
Subject to prior sale

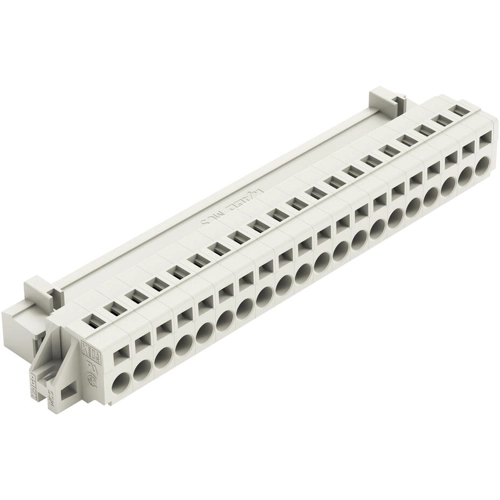

Male connector, 721-620/019-000, Wago
Male connector with mounting flanges 20-pole grid dimension 5 mm / 0.197 in 100 % mismating protected without leading PE contact for screw or similar Mounting types for vertical or horizontal mounting light gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 20 pole | |
| Additional parts | equipped | |
| Colour | light gray | |
| Version | pin header | |
| Rated current | 12 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
