721-170/001-000 | WAGO

Pin header, 10 pole, pitch 5 mm, straight, light gray, 721-170/001-000

Order No.: 44P2505
EAN: 4044918932813
MPN:
721-170/001-000
Series: MCS MIDI

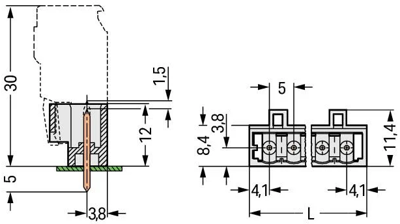

721-170/001-000 WAGO PCB Connection Systems Image 1

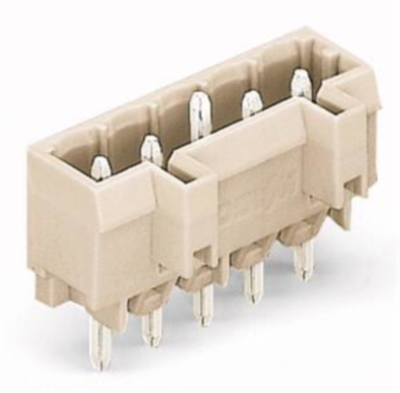

721-170/001-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.5228 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
2.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.5228 €

Male header, 721-170/001-000, Wago

Male connector with straight solder pins 1.2 x 1.2 mm 10-pole pitch 5 mm / 0.197 in 100 % mismating protected with side panels without leading PE contact mating direction perpendicular to PCB light grey

Technical specifications
Colour light gray
Type of locking No
contact surface tin-plated
Rated current 16 A
Grid 5 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 320 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
