713-1409/116-000 | WAGO
Pin header, 18 pole, pitch 3.5 mm, straight, black, 713-1409/116-000
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.06 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0575 €
10 pcs.
4.5577 €
100 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale

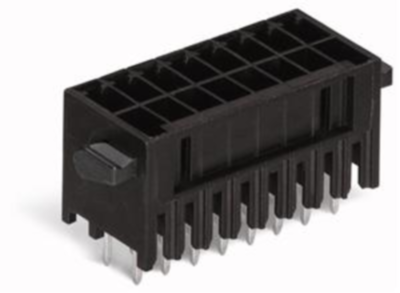

THR male header, 713-1409/116-000, Wago
Male connector with straight solder pins and separation aid 2-row 9x2-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected Mating direction perpendicular to PCB black
Technical specifications
| Connection | clamp connection | |
| Connection plating | tin-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | straight | |
| Pin number | 18 pole | |
| Grid | 3.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
