713-1115/037-000 | WAGO

Socket header, 30 pole, pitch 3.5 mm, straight, black, 713-1115/037-000

Order No.: 44P2024
EAN: 4045454806316
MPN:
713-1115/037-000
Series: MCS MINI HD

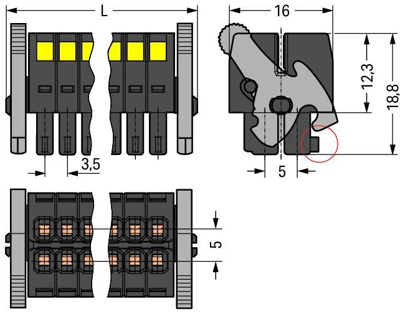

713-1115/037-000 WAGO PCB Connection Systems Image 1

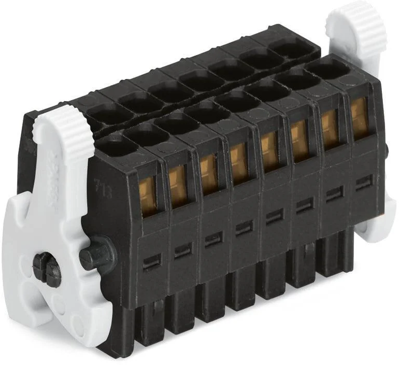

713-1115/037-000 WAGO PCB Connection Systems Image 2

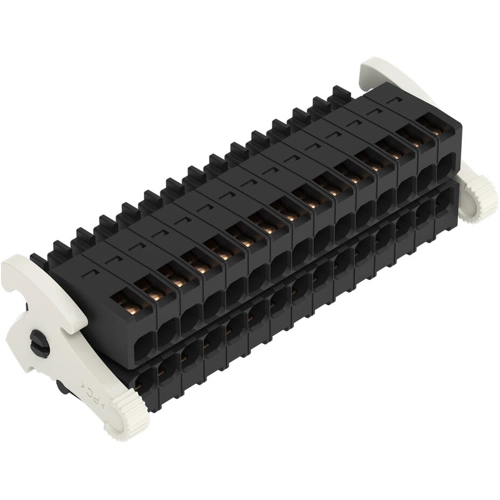

713-1115/037-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
18.4569 € *
Available: 10 pcs.
Total Price:
18.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.4569 €

1-Conductor female connector, 713-1115/037-000, Wago

Female connector with disconnect aid 2-row 15x2-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected can be coded by cutting off the coding lugs black

Technical specifications
Filter Property Value
Pin number 30 pole
Number of rows 2
Connection spring balancer connection
Rated current 10 A
Contact type socket
Orientation straight
Grid 3.5 mm
Version socket header
Additional parts equipped
Type of locking Yes
Colour black
contact surface tin-plated
Rated voltage 160 V
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
RoHS conform Yes
Date of RoHS guidelines 3/31/15
