713-1107/037-000 | WAGO
Socket header, 14 pole, pitch 3.5 mm, straight, black, 713-1107/037-000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.0785 € *
Available: 3 pcs.
Total Price:
12.08 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0785 €
100 pcs.
11.1860 €
200 pcs.
10.6624 €
*incl. VAT plus shipping costs
Subject to prior sale

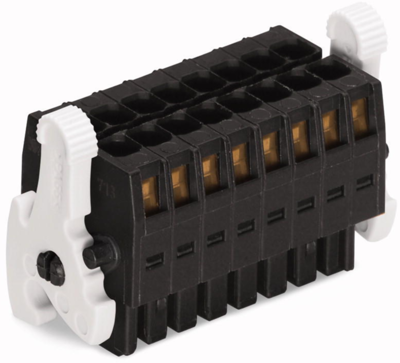

Socket header, 713-1107/037-000, WAGO

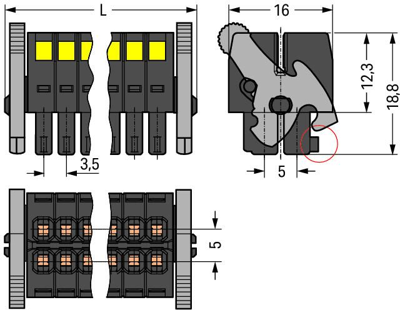

This female connector 713-1107/037-000 simplifies electrical installations. Conductors can only be connected to this female connector if their strip length is between 6 and 7 mm . This product features one conductor terminal and utilizes CAGE CLAMP. Our renowned universal connection known as CAGE CLAMP is the industry standard when it comes to connection technology and electrical interconnections. Dimensions: 33.2 x 16.5 x 22.3 mm. Depending on the conductor type, this female connector is designed for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 14 pole | |
| Grid | 3.5 mm | |
| Connection | spring balancer connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
| Electrical equipment take-back |  |
