713-1114/034-9037 | WAGO

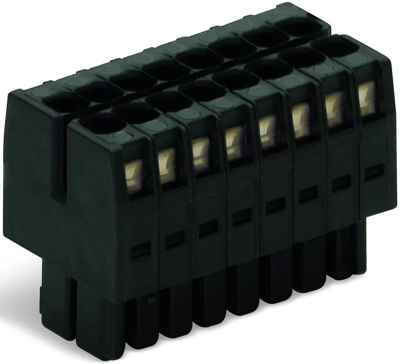

Socket header, 28 pole, pitch 3.5 mm, straight, black, 713-1114/034-9037
Unit Price (€ / pc.)
17.3264 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
1-Conductor female connector, 713-1114/034-9037, Wago

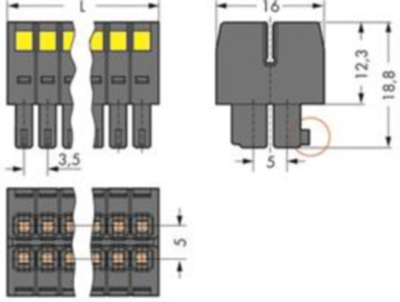

Female connector with strain relief plate 2-row 14x2-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected codable by cutting off the coding lugs black
Technical specifications
| Connection | spring balancer connection | |
| Number of rows | 2 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | straight | |
| Pin number | 28 pole | |
| Grid | 3.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Perfluorobutane sulfonic acid (PFBS) and its salts |
