713-1113/037-9037/034-000 | WAGO

Socket header, 26 pole, pitch 3.5 mm, straight, black, 713-1113/037-9037/034-000

Order No.: 44P1998
EAN: 4050821177562
MPN:
713-1113/037-9037/034-000
Series: 713
WAGO

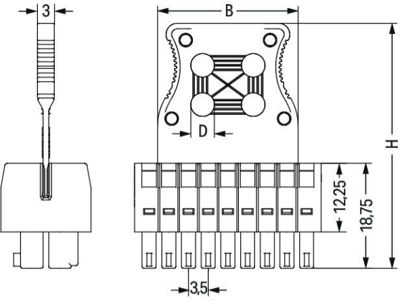

713-1113/037-9037/034-000 WAGO PCB Connection Systems Image 1

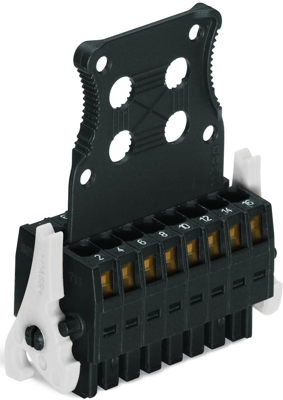

713-1113/037-9037/034-000 WAGO PCB Connection Systems Image 2

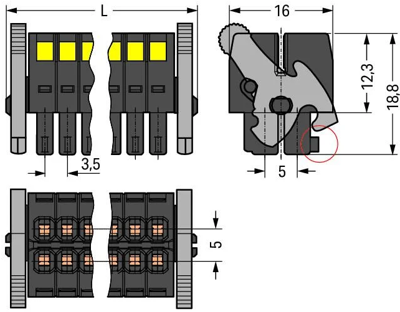

713-1113/037-9037/034-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
16.8623 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.8623 €

1-Conductor female connector, 713-1113/037-9037/034-000, Wago

Female connector with disconnect aid and strain relief plate 2-row 13x2-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected can be coded by cutting off the coding lugs black

Technical specifications
Connection spring balancer connection
Number of rows 2
Version socket header
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 26 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
