713-1110 | WAGO
Socket header, 20 pole, pitch 3.5 mm, straight, black, 713-1110
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
15.2796 € *
Available: 3 pcs.
Total Price:
15.28 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2796 €
10 pcs.
13.7683 €
50 pcs.
12.3760 €
*incl. VAT plus shipping costs
Subject to prior sale

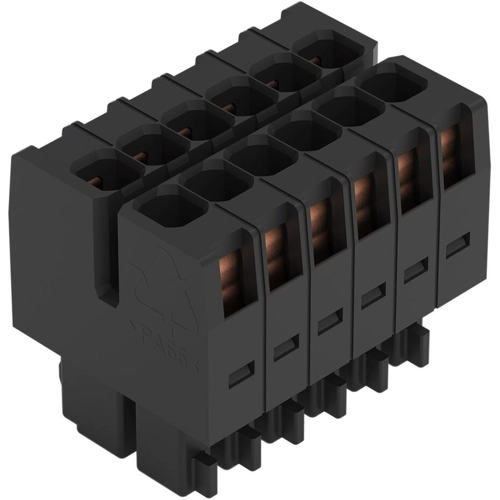

Socket header, 713-1110, WAGO

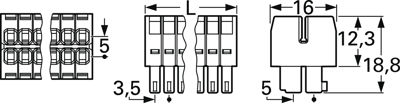

This female connector 713-1110 provides seamless electrical installations. Ensure that the strip lengths are between 6 and 7 mm when connecting conductors to this female connector. This product features one conductor terminal and utilizes CAGE CLAMP. Our proven universal connection known as CAGE CLAMP is the industry standard when it comes to connection technology and electrical interconnections. Dimensions: 36.7 x 16 x 18.8 mm. This female connector is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 20 pole | |
| Grid | 3.5 mm | |
| Connection | spring balancer connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
