713-1110/037-000 | WAGO

Socket header, 20 pole, pitch 3.5 mm, straight, black, 713-1110/037-000

Order No.: 44P1949
EAN: 4055143625159
MPN:
713-1110/037-000
Series: MCS MINI HD
713-1110/037-000 WAGO PCB Connection Systems Image 1
713-1110/037-000 WAGO PCB Connection Systems Image 2
713-1110/037-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
12.5545 € *
Available: 15 pcs.
Total Price:
12.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.5545 €

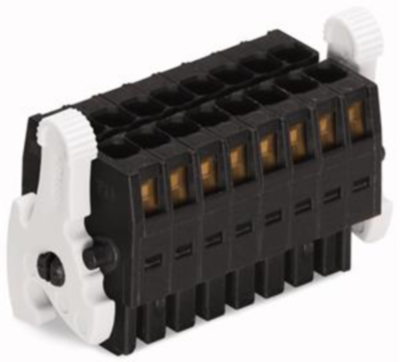

1-Conductor female connector, 713-1110/037-000, Wago

Female connector with disconnect aid 2-row 10x2-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected can be coded by cutting off the coding lugs black

Technical specifications
Pin number 20 pole
Number of rows 2
Connection spring balancer connection
Rated current 10 A
Contact type socket
Orientation straight
Grid 3.5 mm
Version socket header
Additional parts equipped
Type of locking Yes
Colour black
contact surface tin-plated
Rated voltage 160 V
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
SVHC free No
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
RoHS conform Yes
Date of RoHS guidelines 3/31/15
