713-1108/037-000 | WAGO

Socket header, 16 pole, pitch 3.5 mm, straight, black, 713-1108/037-000

Order No.: 44P1921
EAN: 4045454806224
MPN:
713-1108/037-000
Series: MCS MINI HD

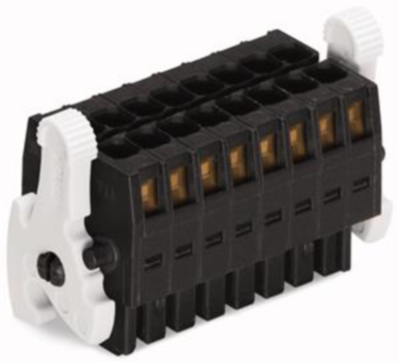

713-1108/037-000 WAGO PCB Connection Systems Image 1
713-1108/037-000 WAGO PCB Connection Systems Image 2
713-1108/037-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
10.1031 € *
Available: 31 pcs.
Total Price:
10.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.1031 €

1-Conductor female connector, 713-1108/037-000, Wago

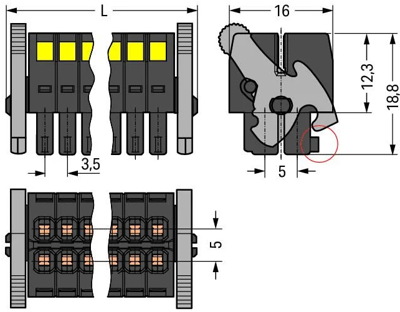

Female connector with disconnect aid 2-row 8x2-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected can be coded by cutting off the coding lugs black

Technical specifications
Filter Property Value
Rated current 10 A
Type of locking Yes
Contact type socket
Colour black
Number of rows 2
Additional parts equipped
Connection spring balancer connection
Orientation straight
Grid 3.5 mm
Rated voltage 160 V
Pin number 16 pole
Version socket header
contact surface tin-plated
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Perfluorobutane sulfonic acid (PFBS) and its salts
RoHS conform Yes
SVHC free No
