713-1107/107-000 | WAGO

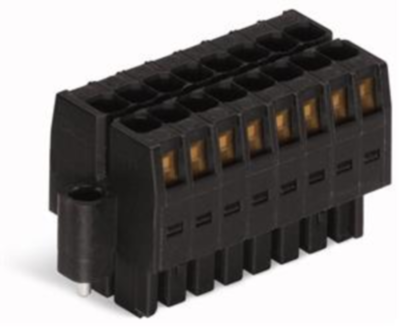

Socket header, 14 pole, pitch 3.5 mm, straight, black, 713-1107/107-000

Order No.: 44P1912
EAN: 4045454806781
MPN:
713-1107/107-000
Series: 713
WAGO
713-1107/107-000 WAGO PCB Connection Systems Image 1
713-1107/107-000 WAGO PCB Connection Systems Image 2
713-1107/107-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
8.9964 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.9964 €

1-Conductor female connector, 713-1107/107-000, Wago

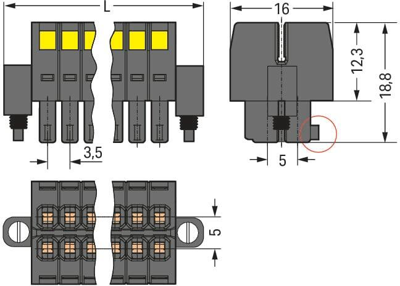

Female connector with screwed flanges 2-row 7x2-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected codable by cutting off the coding lugs black

Technical specifications
Connection spring balancer connection
Number of rows 2
Version socket header
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 14 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
