2734-124/107-000 | WAGO
Socket header, 24 pole, pitch 3.5 mm, angled, light gray, 2734-124/107-000
Unit Price (€ / pc.)
21.9674 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.97 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9674 €
10 pcs.
20.2062 €
50 pcs.
18.5997 €
100 pcs.
16.9218 €
*incl. VAT plus shipping costs
Subject to prior sale

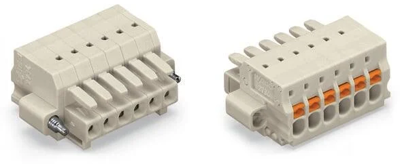

Female header, 2734-124/107-000, Wago
Female connector with actuation pushers and screw flanges 24-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected codable light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Type of locking | Yes | |
| Pin number | 24 pole | |
| Colour | light gray | |
| contact surface | tin-plated | |
| Connection | spring balancer connection | |
| Grid | 3.5 mm | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
