2734-113/107-000 | WAGO

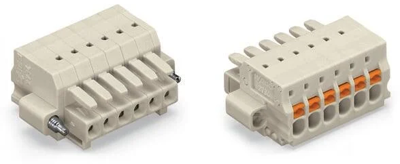

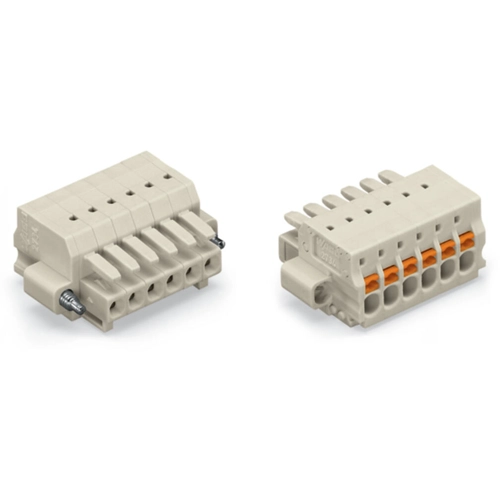

Socket header, 13 pole, pitch 3.5 mm, angled, light gray, 2734-113/107-000
Unit Price (€ / pc.)
9.1035 € *
Standard delivery time from the manufacturer is: 4 Weeks
Female header, 2734-113/107-000, Wago
Female connector with operating push-buttons and screw flanges 13-pole Spacing 3,5 mm / 0.138 in 100 % mismating protected codable light grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| contact surface | tin-plated | |
| Colour | light gray | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| Grid | 3.5 mm | |
| Orientation | angled | |
| Rated voltage | 160 V | |
| Connection | spring balancer connection | |
| Pin number | 13 pole | |
| Version | socket header | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
