2734-106/037-000 | WAGO

Socket header, 6 pole, pitch 3.5 mm, angled, light gray, 2734-106/037-000

Order No.: 44P0264
EAN: 4055143293587
MPN:
2734-106/037-000
Series: MCS MINI
2734-106/037-000 WAGO PCB Connection Systems Image 1
2734-106/037-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.5577 €

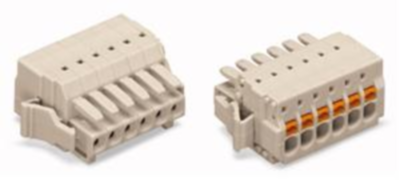

Female header, 2734-106/037-000, Wago

Female connector with actuation pushers and locking latches 6-pole Spacing 3.5 mm / 0.138 in 100 % mismating protected codable light gray

Technical specifications
Filter Property Value
Connection plating tin-plated
Connection spring balancer connection
Colour light gray
Additional parts equipped
Pin number 6 pole
Contact type socket
Orientation angled
Type of locking Yes
Rated voltage 160 V
contact surface tin-plated
Version socket header
Rated current 10 A
Number of rows 1
Grid 3.5 mm
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
