232-864/031-000 | WAGO

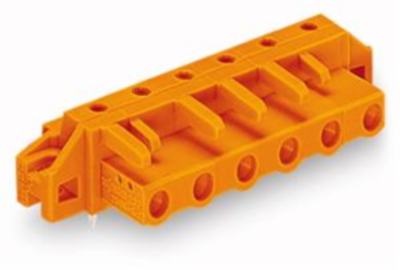

Socket header, 4 pole, pitch 7.62 mm, angled, orange, 232-864/031-000
Unit Price (€ / pc.)
3.5105 € *
Standard delivery time from the manufacturer is: 3 Weeks
Female header, 232-864/031-000, Wago
Female connector with angled solder pins and feed-through flanges 4-pole grid spacing 7.62 mm / 0.3 in solder pin 0.6x1 mm codable mating direction parallel to PCB with 2 latches for completed assembly orange
Technical specifications
| Contact type | socket | |
| Orientation | angled | |
| Grid | 7.62 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 4 pole | |
| Rated voltage | 630 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
