232-738/031-000 | WAGO

Socket header, 8 pole, pitch 7.5 mm, straight, gray, 232-738/031-000

Order No.: 43P7219
EAN: 4045454499570
MPN:
232-738/031-000

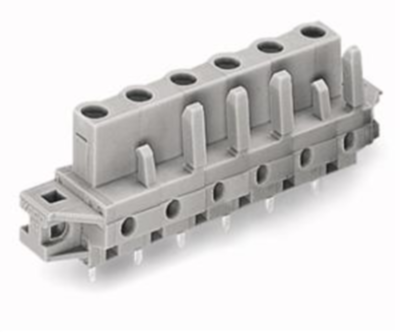

232-738/031-000 WAGO PCB Connection Systems Image 1

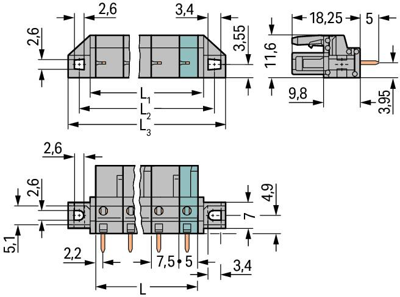

232-738/031-000 WAGO PCB Connection Systems Image 2
232-738/031-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
6.2713 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
6.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.2713 €

Female header, 232-738/031-000, Wago

Female connector with straight solder pins and feed through flanges 8 poles Spacing 7.5 mm / 0.295 in solder pin 0.6x1 mm codable Mating direction perpendicular to PCB with 2 detents for guided assembly grey

Technical specifications
Filter Property Value
Rated current 12 A
contact surface tin-plated
Colour gray
Additional parts equipped
Contact type socket
Connection plating tin-plated
Grid 7.5 mm
Orientation straight
Rated voltage 630 V
Connection solder pin
Pin number 8 pole
Version socket header
Type of locking No
Number of rows 1
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
