232-262 | WAGO

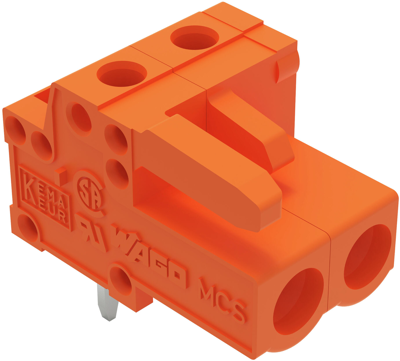

Socket header, 2 pole, pitch 5.08 mm, angled, orange, 232-262
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Female header, 232-262, Wago
Female connector with angled solder pins 2 poles grid dimension 5.08 mm / 0.2 in solder pin 0.6x1 mm codable mating direction parallel to PCB only 1 detent with coding lug with detent orange
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | angled | |
| Pin number | 2 pole | |
| Grid | 5.08 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
