232-174 | WAGO

Socket header, 14 pole, pitch 5.08 mm, straight, orange, 232-174

Order No.: 43P6744
EAN: 4044918578882
MPN:
232-174

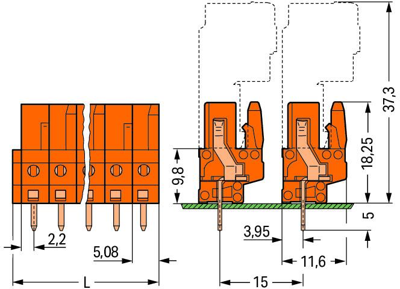

232-174 WAGO PCB Connection Systems Image 1

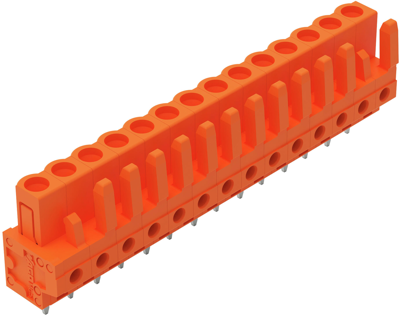

232-174 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.5684 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.5684 €

Female header, 232-174, Wago

Female connector with straight solder pins 14-pole Spacing 5.08 mm / 0.2 in Solder pin 0.6x1 mm codable Mating direction perpendicular to PCB with 2 latches with coding nose with latching nose orange

Technical specifications
Filter Property Value
Additional parts equipped
Connection plating tin-plated
Connection solder pin
Type of locking No
Version socket header
contact surface tin-plated
Contact type socket
Grid 5.08 mm
Pin number 14 pole
Orientation straight
Number of rows 1
Rated voltage 320 V
Rated current 12 A
Colour orange
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
