232-170/047-000 | WAGO

Socket header, 10 pole, pitch 5.08 mm, straight, orange, 232-170/047-000

Order No.: 43P6731
EAN: 4044918624244
MPN:
232-170/047-000

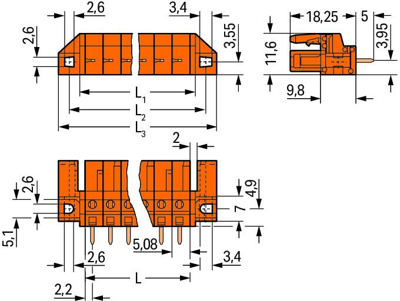

232-170/047-000 WAGO PCB Connection Systems Image 1

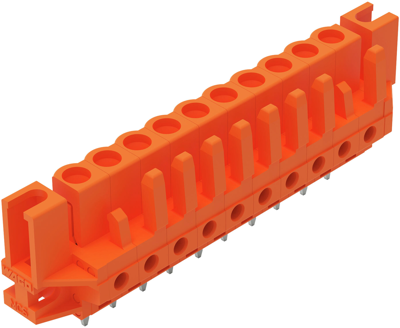

232-170/047-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.2114 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
7.2114 €

Female header, 232-170/047-000, Wago

Female connector with straight solder pins and spacer flanges 10-pole Spacing 5.08 mm / 0.2 in Solder pin 0.6x1 mm codable Mating direction perpendicular to printed circuit board with 2 detents for flush housing mounting orange

Technical specifications
Filter Property Value
Contact type socket
Orientation straight
Grid 5.08 mm
Additional parts equipped
Type of locking No
Rated current 12 A
Number of rows 1
Colour orange
contact surface tin-plated
Version socket header
Connection plating tin-plated
Connection solder pin
Pin number 10 pole
Rated voltage 320 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
