232-169 | WAGO
Socket header, 9 pole, pitch 5.08 mm, straight, orange, 232-169
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 3 Weeks

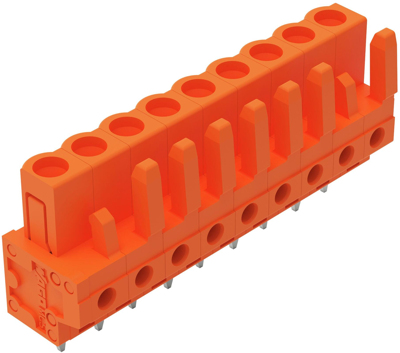

Female header, 232-169, Wago

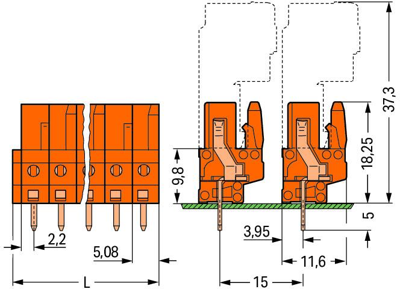

Female connector with straight solder pins 9-pole Spacing 5.08 mm / 0.2 in Solder pin 0.6x1 mm codable Mating direction perpendicular to PCB with 2 detents with coding lug with detent orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| Version | socket header | |
| Pin number | 9 pole | |
| Orientation | straight | |
| Connection | solder pin | |
| Colour | orange | |
| Contact type | socket | |
| Type of locking | No | |
| Connection plating | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
