232-163 | WAGO
Socket header, 3 pole, pitch 5.08 mm, straight, orange, 232-163
Unit Price (€ / pc.)
1.9873 € *
Standard delivery time from the manufacturer is: 3 Weeks

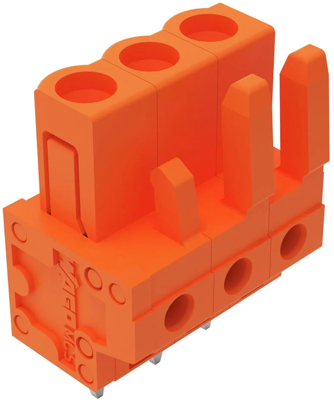

Female header, 232-163, Wago

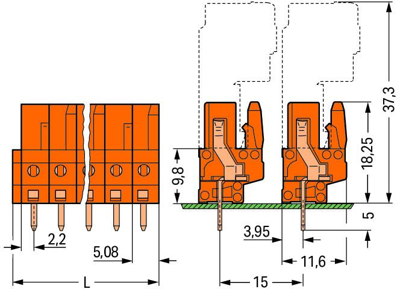

Female connector with straight solder pins 3-pole Spacing 5.08 mm / 0.2 in Solder pin 0.6x1 mm codable Mating direction perpendicular to PCB only 1 detent with coding lug with snap-in lug orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Orientation | straight | |
| Grid | 5.08 mm | |
| Additional parts | equipped | |
| Type of locking | No | |

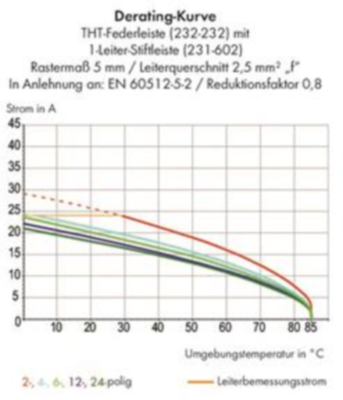

| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 3 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
