231-562/108-000 | WAGO
Pin header, 2 pole, pitch 5.08 mm, angled, orange, 231-562/108-000
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0706 €
50 pcs.
1.8921 €
100 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 231-562/108-000, Wago

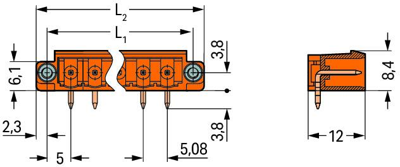

Male header with angled solder pins 1.2 x 1.2 mm and threaded flanges 2 poles Spacing 5.08 mm / 0.2 in mating direction parallel to PCB orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Version | pin header | |
| contact surface | tin-plated | |
| Colour | orange | |
| Number of rows | 1 | |
| Pin number | 2 pole | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Type of locking | Yes | |
| Orientation | angled | |
| Contact type | pin | |
| Connection | solder pin | |
| Rated current | 12 A | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
