231-479/001-000 | WAGO

Pin header, 19 pole, pitch 5 mm, angled, gray, 231-479/001-000

Order No.: 43P6074
EAN: 4044918930871
MPN:
231-479/001-000

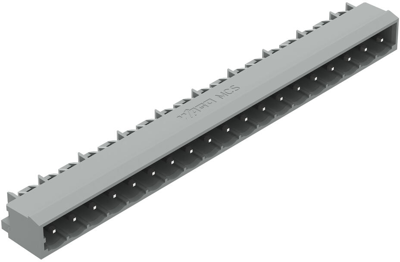

231-479/001-000 WAGO PCB Connection Systems Image 1
231-479/001-000 WAGO PCB Connection Systems Image 2
231-479/001-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.4030 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4030 €

Male header, 231-479/001-000, Wago

Male header with angled solder pins 1.2 x 1.2 mm 19-pin Spacing 5 mm / 0.197 in mating direction parallel to printed circuit board with side panels gray

Technical specifications
Filter Property Value
Rated current 12 A
contact surface tin-plated
Colour gray
Additional parts equipped
Contact type pin
Connection plating tin-plated
Grid 5 mm
Orientation angled
Rated voltage 320 V
Connection solder pin
Pin number 19 pole
Version pin header
Type of locking No
Number of rows 1
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
