231-473/001-000 | WAGO
Pin header, 13 pole, pitch 5 mm, angled, gray, 231-473/001-000
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3911 €
10 pcs.
4.0341 €
50 pcs.
3.6771 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
Subject to prior sale

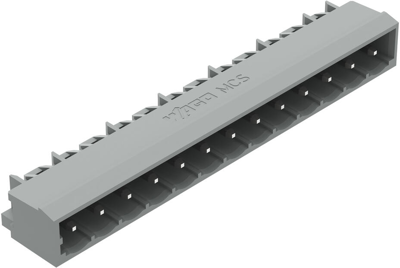

Male header, 231-473/001-000, Wago
Male header with angled solder pins 1.2 x 1.2 mm 13-pin Spacing 5 mm / 0.197 in mating direction parallel to printed circuit board with side panels gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Type of locking | No | |
| Connection | solder pin | |
| Grid | 5 mm | |
| Rated voltage | 320 V | |
| Pin number | 13 pole | |
| Contact type | pin | |
| Colour | gray | |
| Orientation | angled | |
| Rated current | 12 A | |
| Connection plating | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
