231-462/001-000 | WAGO
Pin header, 2 pole, pitch 5 mm, angled, gray, 231-462/001-000
Unit Price (€ / pc.)
0.5950 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
0.60 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5950 €
10 pcs.
0.5355 €
100 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

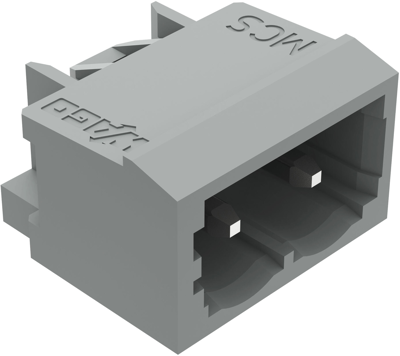

Male connector, 231-462/001-000, Wago

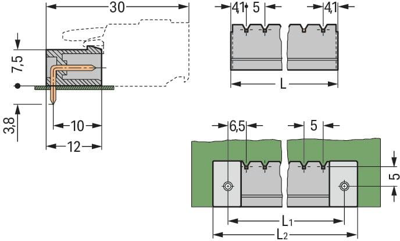

Male header with angled solder pins 1.2 x 1.2 mm 2-pole Spacing 5 mm / 0.197 in mating direction parallel to PCB with side panels gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | No | |
| Version | pin header | |
| Connection | solder pin | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Colour | gray | |
| Rated current | 12 A | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
