231-366/001-000 | WAGO
Pin header, 6 pole, pitch 5.08 mm, straight, orange, 231-366/001-000
Unit Price (€ / pc.)
2.0468 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.8802 €
50 pcs.
1.7136 €
100 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

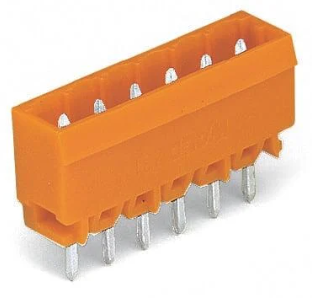

Male header, 231-366/001-000, Wago

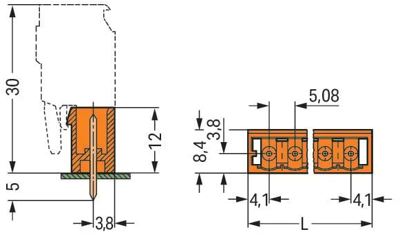

Male header with straight solder pins 1,2 x 1,2 mm 6 poles Spacing 5,08 mm / 0.2 in mating direction perpendicular to PCB with side panels orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | No | |
| Version | pin header | |
| Connection | solder pin | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Pin number | 6 pole | |
| Grid | 5.08 mm | |
| Colour | orange | |
| Rated current | 12 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
