231-365/001-000 | WAGO
Pin header, 5 pole, pitch 5.08 mm, straight, orange, 231-365/001-000
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 3 Weeks
Male header, 231-365/001-000, Wago

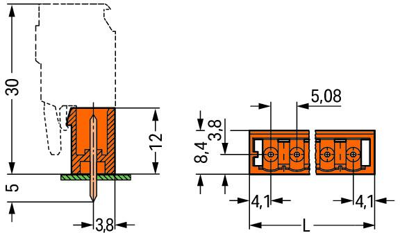

Male connector with straight solder pins 1.2 x 1.2 mm 5 poles Spacing 5.08 mm / 0.2 in mating direction perpendicular to PCB with sidewalls orange
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | No | |
| Version | pin header | |
| Connection | solder pin | |
| Number of rows | 1 | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated voltage | 320 V | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Pin number | 5 pole | |
| Grid | 5.08 mm | |
| Colour | orange | |
| Rated current | 12 A | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
