231-347/001-000 | WAGO
Pin header, 17 pole, pitch 5.08 mm, straight, orange, 231-347/001-000
Unit Price (€ / pc.)
3.5581 € *
Standard delivery time from the manufacturer is: 4 Weeks

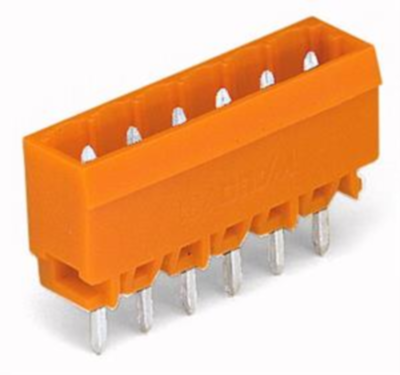

Male connector, 231-347/001-000, Wago

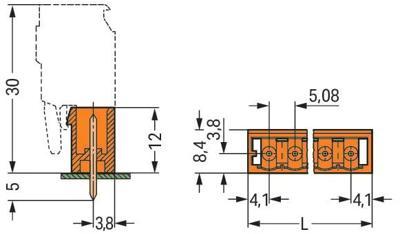

Male header with straight solder pins 1 x 1 mm 17-pin pitch 5.08 mm / 0.2 in mating direction perpendicular to PCB with side walls orange
Technical specifications
| Contact type | pin | |
| Orientation | straight | |
| Grid | 5.08 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 17 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
