231-338/108-000 | WAGO
Pin header, 8 pole, pitch 5.08 mm, straight, orange, 231-338/108-000
Unit Price (€ / pc.)
2.8084 € *
Standard delivery time from the manufacturer is: 3 Weeks

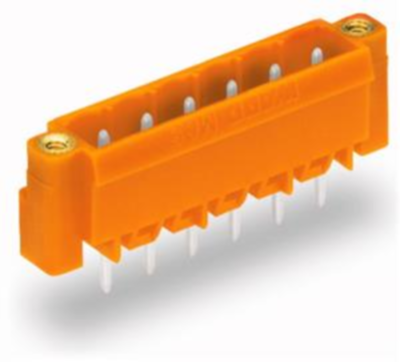

Male header, 231-338/108-000, Wago
Male header with straight solder pins 1 x 1 mm and threaded flanges 8 poles grid spacing 5.08 mm / 0.2 in mating direction perpendicular to PCB orange
Technical specifications
| Contact type | pin | |
| Orientation | straight | |
| Grid | 5.08 mm | |
| Additional parts | equipped | |
| Type of locking | Yes | |
| Rated current | 12 A | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 8 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
