231-2210/037-000 | WAGO

Socket header, 10 pole, pitch 7.5 mm, angled, gray, 231-2210/037-000

Order No.: 43P5699
EAN: 4044918563918
MPN:
231-2210/037-000

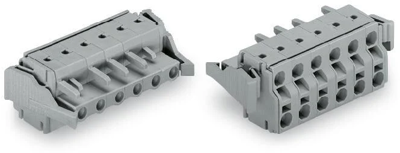

231-2210/037-000 WAGO PCB Connection Systems Image 1
231-2210/037-000 WAGO PCB Connection Systems Image 2
231-2210/037-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.639 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
9.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.639 €

Female header, 231-2210/037-000, Wago

2-conductor female multipoint connector with locking latches 10-pole Spacing 7.5 mm / 0.295 in codable with 2 locking lugs gray

Technical specifications
Filter Property Value
Connection plating tin-plated
Grid 7.5 mm
Orientation angled
Connection spring balancer connection
Contact type socket
Rated current 16 A
Additional parts equipped
Version socket header
Pin number 10 pole
Type of locking Yes
contact surface tin-plated
Number of rows 2
Colour gray
Rated voltage 630 V
Logistics
Property Value
Country of origin PL
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
