231-204/031-000 | WAGO
Socket header, 4 pole, pitch 7.5 mm, angled, gray, 231-204/031-000
Unit Price (€ / pc.)
3.9865 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
3.99 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9865 €
10 pcs.
3.6771 €
50 pcs.
3.3439 €
100 pcs.
3.0107 €
*incl. VAT plus shipping costs
Subject to prior sale
Female header, 231-204/031-000, Wago

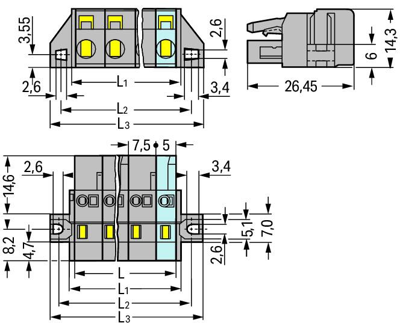

Female connector with mounting flanges 4-pole grid dimension 7.5 mm / 0.295 in codable with 2 latches for surface mounting for screw or similar Mounting types with coding lug with latching lug gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 7.5 mm | |
| Orientation | angled | |
| Connection | spring balancer connection | |
| Contact type | socket | |
| Rated current | 16 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 4 pole | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | gray | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
