231-171/001-000 | WAGO

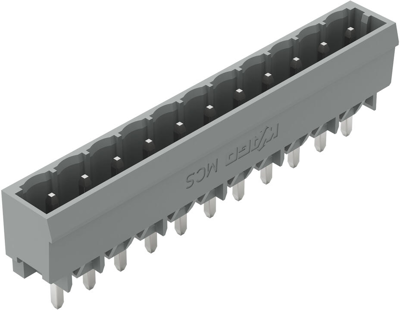

Pin header, 11 pole, pitch 5 mm, straight, gray, 231-171/001-000
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: On Request
Male connector, 231-171/001-000, Wago
Male connector with straight solder pins 1,2 x 1,2 mm 11 poles grid dimension 5 mm / 0.197 in mating direction perpendicular to PCB with side walls grey
Technical specifications
| Contact type | pin | |
| Orientation | straight | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | solder pin | |
| Pin number | 11 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
