231-117/031-000 | WAGO

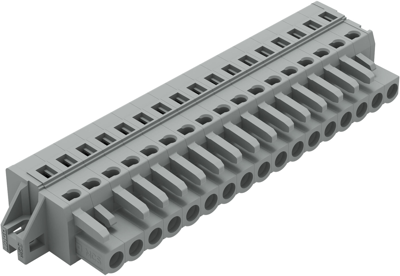

Socket header, 17 pole, pitch 5 mm, angled, gray, 231-117/031-000
Unit Price (€ / pc.)
13.9349 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.93 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9349 €
10 pcs.
12.8163 €
50 pcs.
11.6620 €
100 pcs.
10.4958 €
*incl. VAT plus shipping costs
Subject to prior sale
Female header, 231-117/031-000, Wago
Female connector with mounting flanges 17-pin Spacing 5 mm / 0.197 in codable with 2 pawls for surface mounting for screw or similar types of mounting with coding lug with latching nose grey Mounting types with coding lug with latching lug gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Type of locking | No | |
| Pin number | 17 pole | |
| Additional parts | equipped | |
| Colour | gray | |
| Version | socket header | |
| Rated current | 16 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
