231-116/031-000 | WAGO
Socket header, 16 pole, pitch 5 mm, angled, gray, 231-116/031-000
Unit Price (€ / pc.)
13.2566 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
13.26 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2566 €
10 pcs.
12.1975 €
50 pcs.
11.1027 €
100 pcs.
9.9841 €
*incl. VAT plus shipping costs
Subject to prior sale

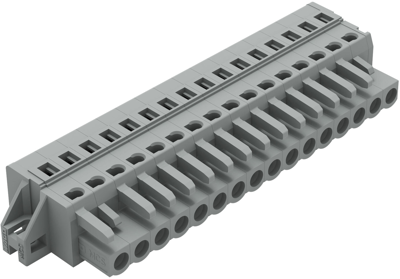

Female header, 231-116/031-000, Wago
Female connector with mounting flanges 16-pole Spacing 5 mm / 0.197 in codable with 2 pawls for surface mounting for screw- or similar type of mounting Mounting types with coding lug with latching lug gray
Technical specifications
| Contact type | socket | |
| Orientation | angled | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | spring balancer connection | |
| Pin number | 16 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
