231-114/031-000 | WAGO
Socket header, 14 pole, pitch 5 mm, angled, gray, 231-114/031-000
Unit Price (€ / pc.)
8.1396 € *
Standard delivery time from the manufacturer is: 3 Weeks

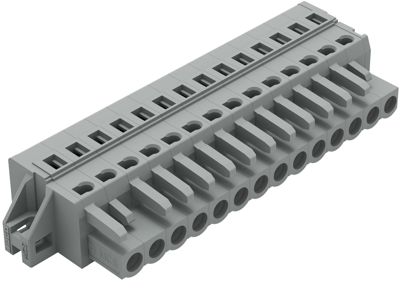

Female header, 231-114/031-000, Wago
Female connector with mounting flanges 14-pole Spacing 5 mm / 0.197 in codable with 2 detents for surface mounting for screw or similar mounting types Mounting types with coding lug with latching lug gray
Technical specifications
| Contact type | socket | |
| Orientation | angled | |
| Grid | 5 mm | |
| Additional parts | equipped | |
| Type of locking | No | |
| Rated current | 16 A | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Version | socket header | |
| Connection plating | tin-plated | |
| Connection | spring balancer connection | |
| Pin number | 14 pole | |
| Rated voltage | 320 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
