2231-114/026-000 | WAGO

Socket header, 2231-114/026-000, WAGO

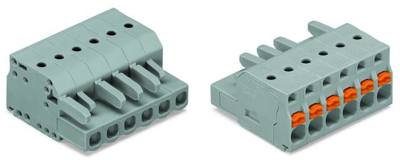

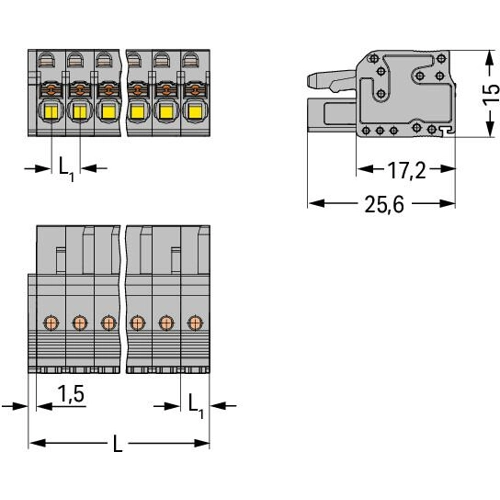

This female connector 2231-114/026-000 simplifies electrical installations. Conductors can only be connected to this female connector if their strip length is between 10 and 11 mm . This product features one conductor terminal and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The item's dimensions are 71.5 x 15 x 25.6 mm. This female connector is suitable for conductor cross sections ranging from 0.2 mm² to 2.5 mm².
