2092-1108/002-000 | WAGO

Female connector with grip plate, 8 pole, pitch 5 mm, straight, light gray, 2092-1108/002-000

Order No.: 43P1322
EAN: 4050821411758
MPN:
2092-1108/002-000
Series: 2092

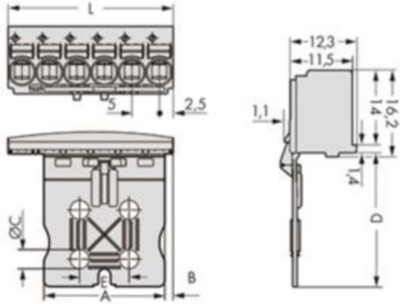

2092-1108/002-000 WAGO PCB Connection Systems Image 1

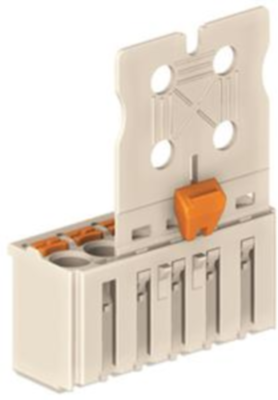

2092-1108/002-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.8314 € *
Available: 40 pcs.
Total Price:
4.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.8314 €

Female connector, 2092-1108/002-000, WAGO

1-conductor female connector, push-button, Push-in CAGE CLAMP, 2.5 mm², pin spacing 5 mm, 8-pole, gripping plate sliding connector release, 2,50 mm², light gray.

Features

  • Universal connection for all conductor types
  • Simple, push-in termination of solid and ferruled conductors
  • Easy-to-use design does not require special tools
  • Ability to wire while mated or unmated
  • Integrated locking latches prevent accidental disconnection
Technical specifications
Connection push-in
Breakable No
Number of rows 1
Colour light gray
Contact type socket
Additional parts equipped
Rated current 15 A
Rated voltage 320 V
Pin number 8 pole
Orientation straight
Version socket header
Grid 5 mm
Logistics
Customs tariff number 85363010
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
