2091-1154 | WAGO
Socket header, 4 pole, pitch 3.5 mm, straight, light gray, 2091-1154
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5823 € *
Standard delivery time from the manufacturer is: 3 Weeks

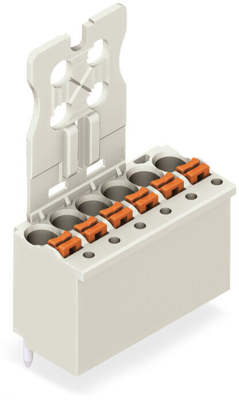

Socket header, 2091-1154, WAGO
This female connector 2091-1154 simplifies electrical installation. Ensure that the strip length is between 8 and 9 mm when connecting a conductor to this female connector. This product features one conductor terminal and utilizes Push-in CAGE CLAMP. Our Push-in CAGE CLAMP is a universal, maintenance-free connection solution for any conductor type, with a key feature: it allows direct insertion of a solid or fine-stranded conductor with a ferrule without needing tools. No preparation is required, for example, crimping the conductor's ferrule is not necessary.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
