2091-1152/000-1000 | WAGO
Socket header, 2 pole, pitch 3.5 mm, straight, light gray, 2091-1152/000-1000
Unit Price (€ / pc.)
2.6061 € *
Standard delivery time from the manufacturer is: 3 Weeks

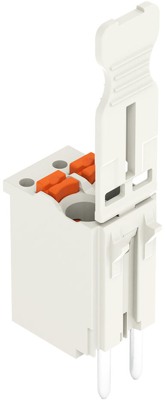

THT female connector, 2091-1152/000-1000, WAGO
1-conductor THT female connector straight, push-button, Push-in cage clamp, 1.5 mm², Pin spacing 3.5 mm, 2-pole, 1.0 mm Ø solder pin, Gripping plate, direct marking, 1.50 mm², light gray.
Features
- Universal connection for all conductor types
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Integrated test ports for testing parallel to conductor entry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| Number of rows | 1 | |
| Connection | push-in | |
| Rated voltage | 160 V | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Version | socket header | |
| Pin number | 2 pole | |
| Contact type | socket | |
| Grid | 3.5 mm | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
