753-1631 | WAGO
WAGO 753-1631
Active
Product by WAGO at Bürklin Elektronik

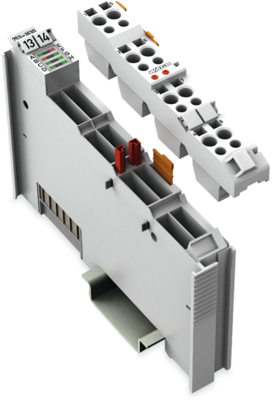

SMI master, 753-1631, WAGO

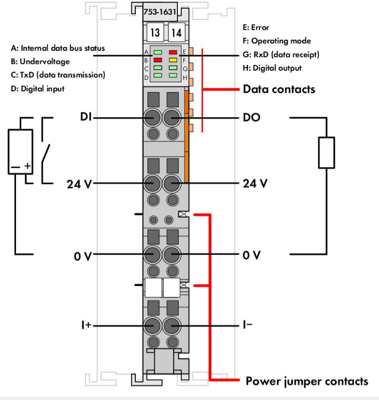

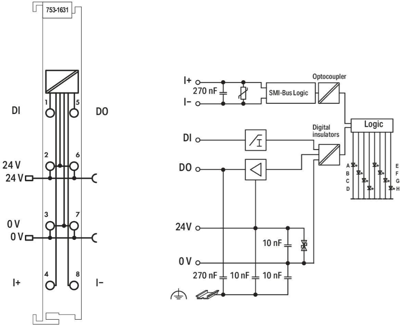

The SMI Master is a standard interface to SMI-compliant electrical drives. The SMI Master operates up to 16 SMI drives. Several SMI Masters may be operated within a node. Communication between applications and SMI drives is performed via special IEC function blocks. These function blocks support both single and group addressing, as well as status monitoring. Alternatively, the fieldbus coupler mode provides simple function calls for control without complex PLC programming. The SMI configurator is suitable for addressing, configuring and commissioning SMI drives. The programmed commands can be overwritten by an external sensor or switch via additional digital input. The drive can be switched off by a relay via additional digital output to save energy. The drive is automatically switched on again by the output before the next drive command.
| Contact connection | clamp connection | |
| Degree of protection (IP) | IP20 |
| Country of origin | DE |
| Customs tariff number | 85389099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
