789-536 | WAGO

Name: Relay, 2 Form A (N/O) + 2 Form B (N/C), 24 V (DC), 24 V (AC), 4 A, 250 V (AC), 789-536
Brand: WAGO
SKU: 45P0789
Price: 130.36 EUR
Availability: OutOfStock

Relay, 2 Form A (N/O) + 2 Form B (N/C), 24 V (DC), 24 V (AC), 4 A, 250 V (AC), 789-536

Order No.: 45P0789

EAN: 4017332814850

MPN:

789-536

Series: 789

Image may differ

Key Specification:

Contact type 2 Form A (N/O) + 2 Form B (N/C)

switching current 4 A

Coil voltage (DC) 24 V

Coil voltage (AC) 24 V

Download Datasheet Technical specifications

Unit Price (€ / pc.)

130.3645 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

130.36 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

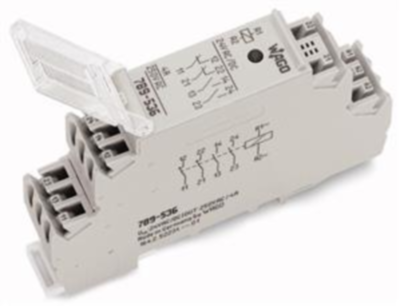

Relay module, 789-536, WAGO

Relay module, Nominal input voltage: 24 V AC/DC, 2 break and 2 make contacts, Limiting continuous current: 4 A, Red status indicator, Module width: 18 mm, 2.50 mm², Gray.

Technical specifications

	Connection	spring-clamp connection
	Contact type	2 Form A (N/O) + 2 Form B (N/C)
	Contact material	AgNi + Au
	Switching Voltage (AC)	250 V
	switching current	4 A
	Coil voltage (AC)	24 V
	Coil voltage (DC)	24 V
