753-516 | WAGO
Output module, Outputs: 4, (W x H x D) 12 x 100 x 698 mm, 753-516
Unit Price (€ / pc.)
60.4996 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

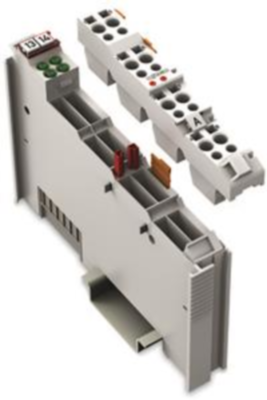

Digital output, 753-516, WAGO

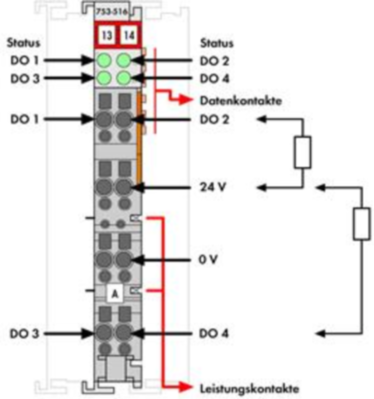

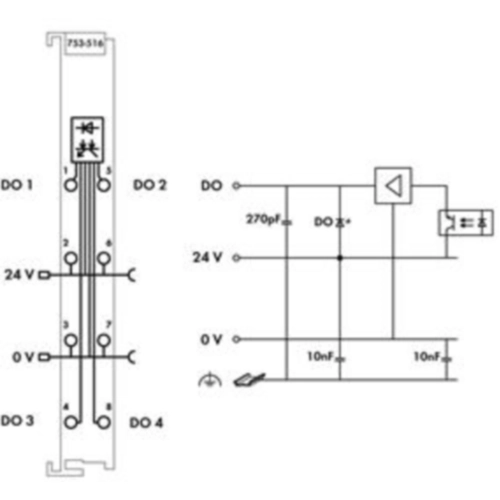

4-channel digital output, 24 VDC, 0.5 A, Low-side switching.
Features
- This digital output module transmits control signals from the automation device to the connected actuators
- All outputs are short-circuit-protected
- Field and system levels are electrically isolated
Technical specifications
| Depth | 698 mm | |
| Assembly | DIN rail | |
| Width | 12 mm | |
| Height | 100 mm | |
| Number of digital outputs | 4 | |
| Version | output module |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, lead monoxide (lead oxide) |
| SVHC free | No |
| RoHS conform | Yes |
